We recommend using the Elastameric Variable Membrane (EVM) Copolymer Coatings
(roll-on/spray-on interior finishes) with our insulated pool wall system. Many types of interior finishes can be used,
such as: Composite Fiberglass Finish (CFF), Epoxy Coatings, and Pre-fabricated Liners (only available for purchase from
other manufacturers), however we only provide the EVM Coatings with our pool kits.
Each manufacturer warranties of their interior product anywhere from 5 to 25 years.
Elastomeric Variable Membrane (EVM) Copolymer Coatings
were developed to overcome one of the inherent deficiencies in
conventional surface coatings -- that is to provide film continuity
in the event of an existing or developing cracks in a masonry
surface. EVM coatings completely seal surface porosity and cracks.
That means leak proof!
Our 30
years of experience indicates that EVM coatings can be applied by
spray-on or roll-on to virtually any dry, clean porous substrate and
clean, hard surfaces. This includes concrete, masonry, stucco, plasters,
sheetrock, stainless steel, steel, fiberglass and acrylic.

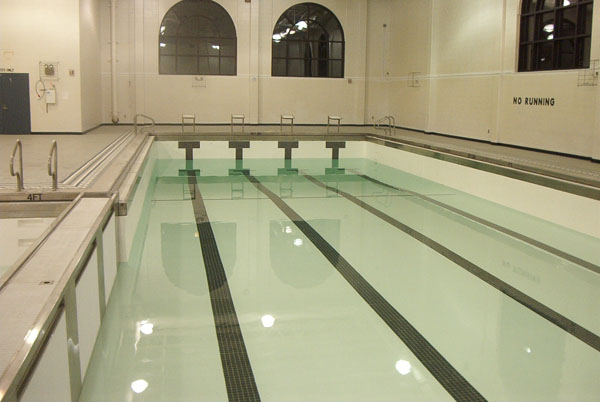

Before

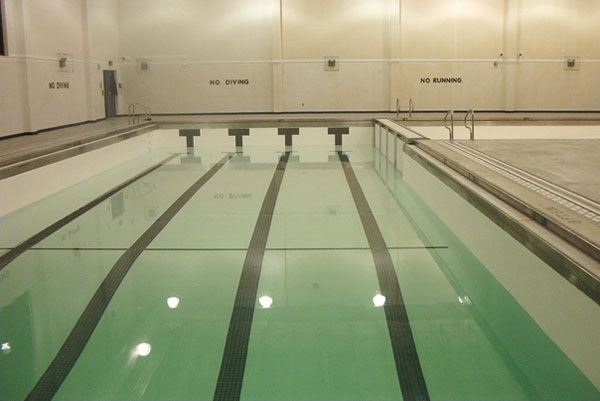

After
Proper application over the proper primer insures an adhesion of 20 pounds per square
inch and this level assures protection from blistering or de-lamination except in applications,
which require vapor transmission through the coating.
In this application, a sealer/primer – Hydrostop 3000 – is rolled on the surface (pools,
water tanks, etc.) to seal pores and stop hydro static pressure and vapor transmission.
The EVM coating has a tensile strength of 1500 psi and elongates in excess of two hundred percent
at 70°F and remains flexible at temperatures as low as -30°F. The ability to elongate normally
compensates for most structural movement and eliminates the hairline cracks that develop with
non-elastic coatings.
Pools and roofs have gone 10 years and more without discoloration. We have the records. If desired,
the coating may be rejuvenated at anytime by repeating the cleaning and top coat application. Our product
has made pools and roofs watertight for over 30 years. It makes any pool structure even more effective and
durable. This product comes in white, but can be ordered in any color when a color sample is provided and
for $0.25 per Sq. Ft.
With this type of pool finish, you'll reduce your pool maintenance, and there can be a noticeable reduction in
pool chemical requirements and energy usage, thus helping the environment.
The finish is easily cleaned with simple detergents. EVM coatings will not allow mildew or mold to grow
and is unmarred by most acids, alkalis, solvents, oils and even sea water. Our coatings have been health approved
by state department officials. This product has been used on new pools and remodels by residential customers to
commercial projects including for the U.S. military.
The EVM coating is consistently smooth, no scuffed feet or
knees. It stretches 200% and is long lasting-attractive
with a life expectancy of up to 25 years. Application
is easy; usually taking 2 men 1 day prep, 1 day spray
with very little masking and very little overspray. Drying
time for product is 72 hours, approximately.
The EVM Coating is priced at $3.50 per Sq. Ft, including shipping. The cost to
cover 150 Sq. Ft. (30+ mil) is $525 for the product, which includes sealer, primer, and finish coat.
To calculate the amount you need for a pool - use length times width, plus perimeter by average depth.
Example:
12'x24' pool equals 288 Sq. Ft., plus 72' perimeter, by depth 3-1/2' to 5-1/2' equals 4-1/2' average depth;
72' times 4-1/2' equals 324 Sq. Ft. for a total of 612 Sq. Ft. (612 Sq. Ft. divided by 150 Sq. Ft. would
require 4 times of product)612 Sq. Ft. of material times $3.50 per Sq. Ft. (including shipping) equates to $2142.

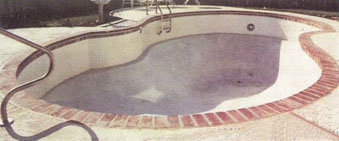

Before

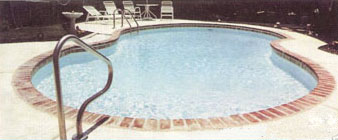

After
Customer needs to specify what the type of surface to be
coated with the EVM coating when ordering (to ensure the
appropriate primers are used for the different types of
surfaces as they may vary).
Another Example:
450 sq. ft. of fiberglass walls with a 450 sq. ft.
concrete floor equals a total of 900 sq. ft. of material
required. Along with the total square footage (of the
walls and floor), customer should specify what type of
surface is to be covered to ensure the proper primer is
shipped to be applied to your surface (see others
surfaces below).
Types of surface coverable: · Painted Pools with Chlorinated Rubber Paint Concrete - Plaster - Marcite - Star Brite. · New/Clean Concrete · Fiber Glass - Stainless Steel - Aluminum - Epoxy · Rusted Steel · Coating for Salt Exposure (pools near the ocean, using ocean water)
FACTS · Less Maintenance - A
durable stain resistance finish reduces 90 percent of your pool maintenance. · Less Chlorine - A totally
Algae Resistant Surface. Save 50% of your chemical and chlorine expense. · Keeps Your Operating Costs
Down · No Cracks - Flexible up to
200 percent of its original shape. · Smooth Finish - No more
scraped knees or elbows or raw feet. A total non-porous finish. · Stain and Blemish Free -
Stark white, high sheen, spotless finish. Long lasting expectancy between 15-25
years. · Applied over virtually
anything.
For any project requiring a flexible, pool coating with excellent
waterproofing properties, we suggest considering using the Elastameric Variable Membrane (EVM)
Copolymer Coatings.
Price for the EVM Coating is $3.50 per square foot of
entire surface area to be covered with primer and finish coat.
Any color is available upon request. You need to supply us
with a color chip. There is an additional charge of $0.25 per
square foot to add color. Please call toll free
800-348-6916 to order.
Border Tile
We recommend Pool tile be installed for this simple
reason: reduced maintenance. On a concrete pool, the tile is
used to create a water line surface that is both nonporous and easy
to clean. Body oils and lotions collect at the water's surface and
are responsible for the "scum line." When that scum line falls onto
a porous surface, like plaster, it can be difficult or impossible to
clean. For that reason the tile is used to protect the pool surface
from an undesirable stain and allows the surface to be cleaned
easily whether it is a plaster finish or EVM Coating.
Depending on your budget, you can purchase real pool tile or select
one of the adhesive Borderline tiles available. Border
Lines™ patented adhesive tile borders are designed to be an
affordable alternative for updating a stainless steel pool wall, EVM
Coatings, acrylic, fiberglass or vinyl liner pools and is safe on
all surfaces. Using the finest materials, the heavy duty 4
mil. vinyl tile border is printed with long lasting, UV stabilized,
chemical and water resistant inks, utilizing a patented, water
resistant adhesive that instantly transforms your pool without
costly installation of real tile. Application and future
removal couldn't be easier! Simply peel off the Border Line™
backing and adhere along the inner perimeter of any pool.

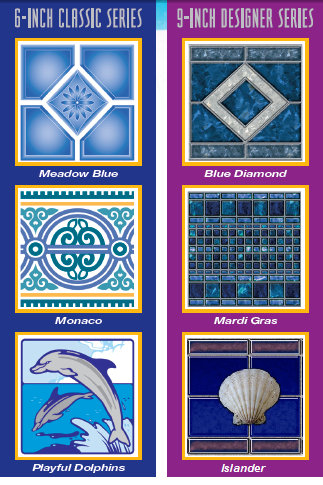

Borderlines™ are available in two different styles:
· Classic Series - offers traditional patterns
in a 6" width ·
Designer Series - premium borders featuring designer patterns in a
9" width
Each Borderlines™ kit contains 10 lineal ft. of decorative water
resistant border in 5 convenient 6" x 24" sections.
